GAMMA

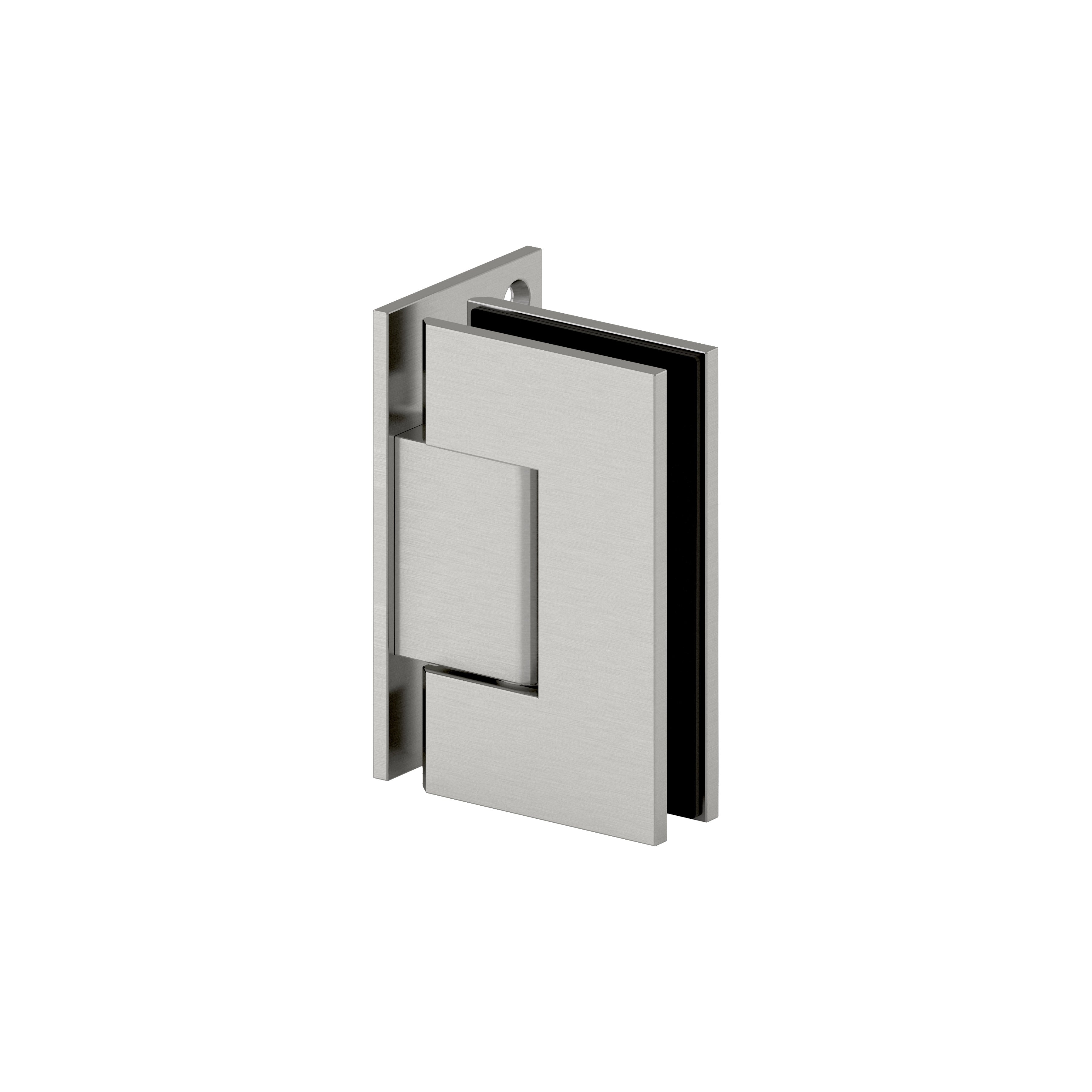

WALL MOUNT OFFSET BACK PLATE HINGE

GAM-OB90-CH
  • Compatible with FG Glass Panels
  • Solid brass construction
  • Total allowable door weight (2 hinges) - Up to 110 lbs. (50 kg) and maximum door width of 32"
  • Use with 3/8" (10 mm) or 1/2" (12 mm) thickness tempered safety glass
  • Fast Fit technology easy slide-on hinge
  • Fixed gaskets to prevent door slippage
  • Available in several finishes
See details
SELECT FINISH
Chrome
{{variantURL}}&width=360 360w,{{variantURL}}&width=375 375w,{{variantURL}}&width=535 535w,{{variantURL}}&width=750 750w,{{variantURL}}&width=1024 1024w,{{variantURL}}&width=1280 1280w,{{variantURL}}&width=1366 1366w,{{variantURL}}&width=1440 1440w
DETAILS
PRODUCT SPECS
DOWNLOADS
DESCRIPTION
The Future Glass Gamma Wall Mount Offset Back Plate Hinge is made from high-quality solid brass. Unlike other brands, Future Glass hinges feature a fixed rubber gasket designed to reduce door slippage. The unique square cut-out design alleviates the need for traditional mouse ear glass panel cut-outs. Eliminating the need to remove the backing plate completely when fixing the hinge to the door panel allows for significantly faster and easier installation. The images provided are of the actual product or a close representation. Colors may vary, depending on your screen settings.
Technical details
5 Degree Preset
No
Adjustable
No
Back Plate
Offset Back
Glazing Thickness (in.)
3/8 to 1/2
Material
Brass
Max Door Weight (lbs.) (2 Hinges)
110
Max Door Weight (lbs.) (3 Hinges)
140
Max Door Width (in.) (2 Hinges)
32
Max Door Width (in.) (3 Hinges)
32
Mount Type
Wall Mount
Self-Centering
Yes
Weight (lbs.)
1.62
Width (in.)
2
Height (in.)
3.5
DOWNLOADABLE CONTENT
DETAILS
DESCRIPTION
The Future Glass Gamma Wall Mount Offset Back Plate Hinge is made from high-quality solid brass. Unlike other brands, Future Glass hinges feature a fixed rubber gasket designed to reduce door slippage. The unique square cut-out design alleviates the need for traditional mouse ear glass panel cut-outs. Eliminating the need to remove the backing plate completely when fixing the hinge to the door panel allows for significantly faster and easier installation. The images provided are of the actual product or a close representation. Colors may vary, depending on your screen settings.
PRODUCT SPECS
Technical details
5 Degree Preset
No
Adjustable
No
Back Plate
Offset Back
Glazing Thickness (in.)
3/8 to 1/2
Material
Brass
Max Door Weight (lbs.) (2 Hinges)
110
Max Door Weight (lbs.) (3 Hinges)
140
Max Door Width (in.) (2 Hinges)
32
Max Door Width (in.) (3 Hinges)
32
Mount Type
Wall Mount
Self-Centering
Yes
Weight (lbs.)
1.62
Width (in.)
2
Height (in.)
3.5
DOWNLOADS
DOWNLOADABLE CONTENT
Discover how clean & simple installation can be
