VOLANS

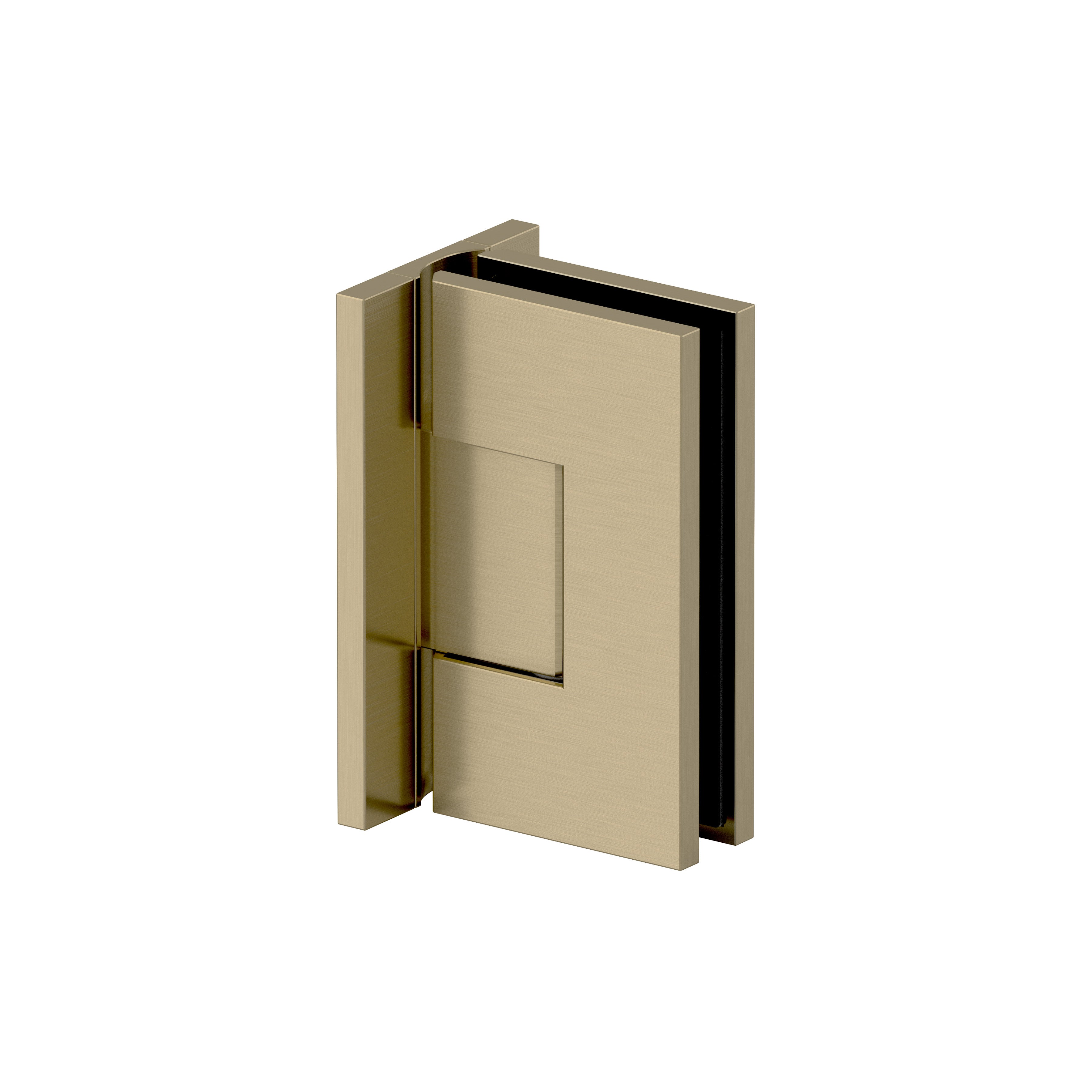

VOLANS ADJUSTABLE WALL MOUNT FULL BACK PLATE HINGE WITH NO-SHOW COVERS
VOL-FBNSADJ-BB
- NOT compatible with FG Glass Panels
- No-show covers snap on to conceal screws for a clean, minimalist look
- Scalloped backplate allows glass to sit closer to wall
- Adjustable to accommodate any angle up to 90 degrees
- Grub Screw is a revolutionary clamp system that doesn't lock on pin, making minor adjusments quick, easy, and accurate even to the slightest degree change
- Self-center closing when within 15 degrees of closed position
- 90-degree swing inwards and outwards
See details
{{variantURL}}&width=360 360w,{{variantURL}}&width=375 375w,{{variantURL}}&width=535 535w,{{variantURL}}&width=750 750w,{{variantURL}}&width=1024 1024w,{{variantURL}}&width=1280 1280w,{{variantURL}}&width=1366 1366w,{{variantURL}}&width=1440 1440w
DESCRIPTION
The Future Glass Adjustable Volans No-show Wall Mount Full Back Plate Hinge is made from high-quality solid brass. As part of our mid-size hinge collection, the Volans supports door weights up to 130 lbs. It offers the same look as our Volans hinge but can be adjusted to fit any angle up to 90 degrees. No-show covers snap on to conceal hardware and provide a clean, minimalist finish to any shower build. Unlike other brands, Future Glass hinges feature a fixed rubber gasket designed to reduce door slippage. The unique square cut-out design alleviates the need for traditional mouse ear glass panel cut-outs. Eliminating the need to remove the backing plate completely when fixing the hinge to the door panel allows for significantly faster and easier installation. The images provided are of the actual product or a close representation. Colors may vary, depending on your screen settings.
Technical details
Edge Profile
Square
Back Plate
Full Back
Glazing Thickness (in.)
3/8 to 1/2
Material
Brass
Max Door Weight (lbs.) (2 Hinges)
130
Max Door Weight (lbs.) (3 Hinges)
160
Max Door Width (in.) (2 Hinges)
36
Max Door Width (in.) (3 Hinges)
36
Mount Type
Wall Mount
Self-Centering
Yes
Weight (lbs.)
2.06
Width (in.)
2.25
Height (in.)
3.3125
DOWNLOADABLE CONTENT
DETAILS
DESCRIPTION
The Future Glass Adjustable Volans No-show Wall Mount Full Back Plate Hinge is made from high-quality solid brass. As part of our mid-size hinge collection, the Volans supports door weights up to 130 lbs. It offers the same look as our Volans hinge but can be adjusted to fit any angle up to 90 degrees. No-show covers snap on to conceal hardware and provide a clean, minimalist finish to any shower build. Unlike other brands, Future Glass hinges feature a fixed rubber gasket designed to reduce door slippage. The unique square cut-out design alleviates the need for traditional mouse ear glass panel cut-outs. Eliminating the need to remove the backing plate completely when fixing the hinge to the door panel allows for significantly faster and easier installation. The images provided are of the actual product or a close representation. Colors may vary, depending on your screen settings.
PRODUCT SPECS
Technical details
Edge Profile
Square
Back Plate
Full Back
Glazing Thickness (in.)
3/8 to 1/2
Material
Brass
Max Door Weight (lbs.) (2 Hinges)
130
Max Door Weight (lbs.) (3 Hinges)
160
Max Door Width (in.) (2 Hinges)
36
Max Door Width (in.) (3 Hinges)
36
Mount Type
Wall Mount
Self-Centering
Yes
Weight (lbs.)
2.06
Width (in.)
2.25
Height (in.)
3.3125
DOWNLOADS
DOWNLOADABLE CONTENT
Discover how clean & simple installation can be
