CERES

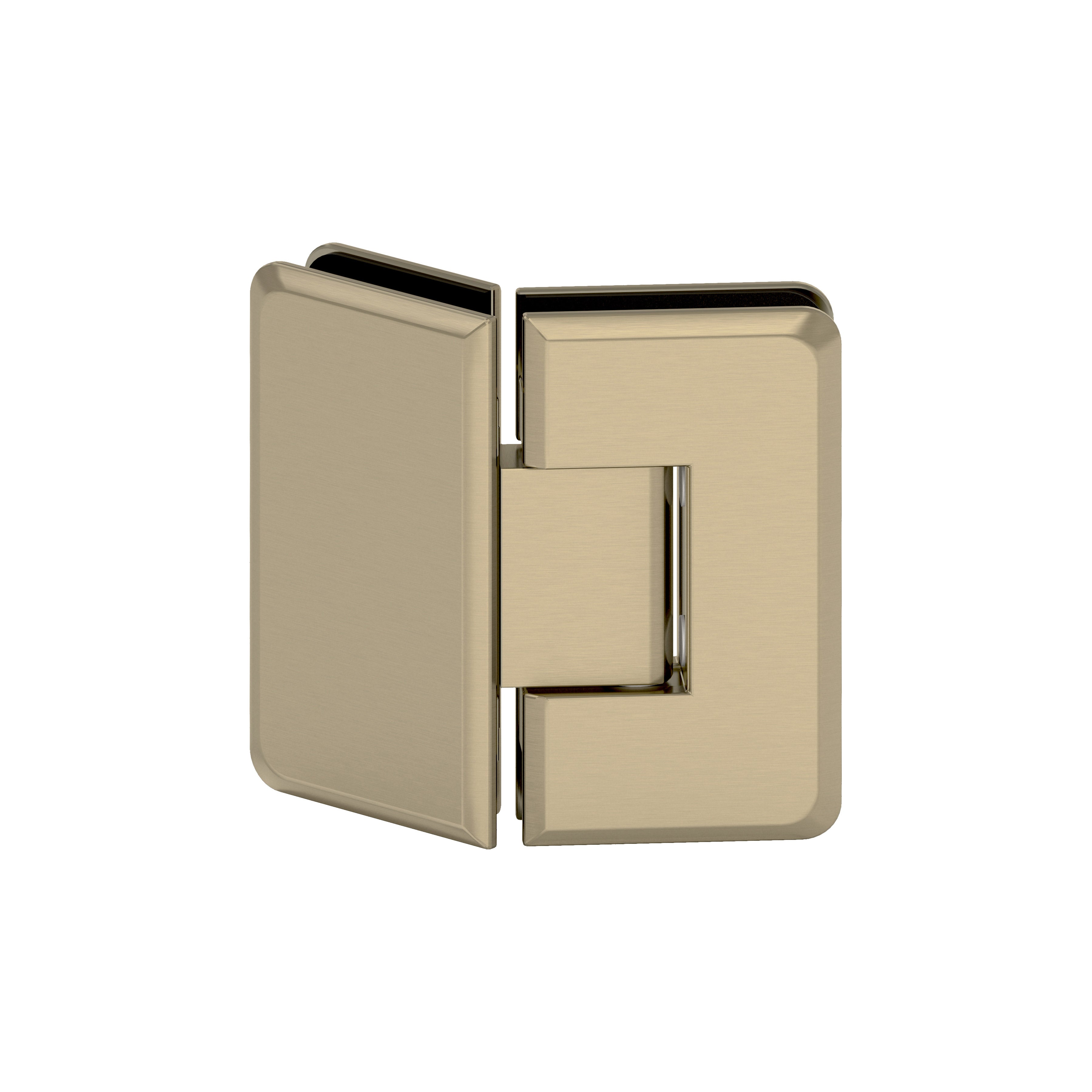

CERES ADJUSTABLE 135 DEGREE GLASS-TO-GLASS HINGE
CRS-135ADJ-BB
- NOT compatible with FG Glass Panels
- Adjustable up to 15 degrees in both directions
- Grub Screw is a revolutionary clamp system that doesn't lock on pin, making minor adjusments quick, easy, and accurate even to the slightest degree change
- Solid brass construction
- Total allowable door weight (2 hinges) - Up to 130 lbs. (59 kg) and maximum door width of 36"
- Use with 3/8" (10 mm) or 1/2" (12 mm) thickness tempered safety glass
- Fast Fit technology easy slide-on hinge
See details
{{variantURL}}&width=360 360w,{{variantURL}}&width=375 375w,{{variantURL}}&width=535 535w,{{variantURL}}&width=750 750w,{{variantURL}}&width=1024 1024w,{{variantURL}}&width=1280 1280w,{{variantURL}}&width=1366 1366w,{{variantURL}}&width=1440 1440w
DESCRIPTION
The Future Glass Adjustable Ceres 135 Degree Glass-to-Glass Hinge is made from high-quality solid brass. As part of our mid-size hinge collection, the Ceres supports door weights up to 130 lbs. It offers the same look as our Ceres hinge but can be adjusted 15 degrees in either direction. Unlike other brands, Future Glass hinges feature a fixed rubber gasket designed to reduce door slippage. The unique square cut-out design alleviates the need for traditional mouse ear glass panel cut-outs. Eliminating the need to remove the backing plate completely when fixing the hinge to the door panel allows for significantly faster and easier installation. The images provided are of the actual product or a close representation. Colors may vary, depending on your screen settings.
Technical details
Edge Profile
Beveled
Glazing Thickness (in.)
3/8 to 1/2
Material
Brass
Glass-to-Glass Angle
135
Max Door Weight (lbs.) (2 Hinges)
130
Max Door Weight (lbs.) (3 Hinges)
160
Max Door Width (in.) (2 Hinges)
36
Mount Type
Glass to Glass
Self-Centering
Yes
Weight (lbs.)
3.275
Width (in.)
2.25
Height (in.)
3.9375
DOWNLOADABLE CONTENT
DETAILS
DESCRIPTION
The Future Glass Adjustable Ceres 135 Degree Glass-to-Glass Hinge is made from high-quality solid brass. As part of our mid-size hinge collection, the Ceres supports door weights up to 130 lbs. It offers the same look as our Ceres hinge but can be adjusted 15 degrees in either direction. Unlike other brands, Future Glass hinges feature a fixed rubber gasket designed to reduce door slippage. The unique square cut-out design alleviates the need for traditional mouse ear glass panel cut-outs. Eliminating the need to remove the backing plate completely when fixing the hinge to the door panel allows for significantly faster and easier installation. The images provided are of the actual product or a close representation. Colors may vary, depending on your screen settings.
PRODUCT SPECS
Technical details
Edge Profile
Beveled
Glazing Thickness (in.)
3/8 to 1/2
Material
Brass
Glass-to-Glass Angle
135
Max Door Weight (lbs.) (2 Hinges)
130
Max Door Weight (lbs.) (3 Hinges)
160
Max Door Width (in.) (2 Hinges)
36
Mount Type
Glass to Glass
Self-Centering
Yes
Weight (lbs.)
3.275
Width (in.)
2.25
Height (in.)
3.9375
