CALLISTO

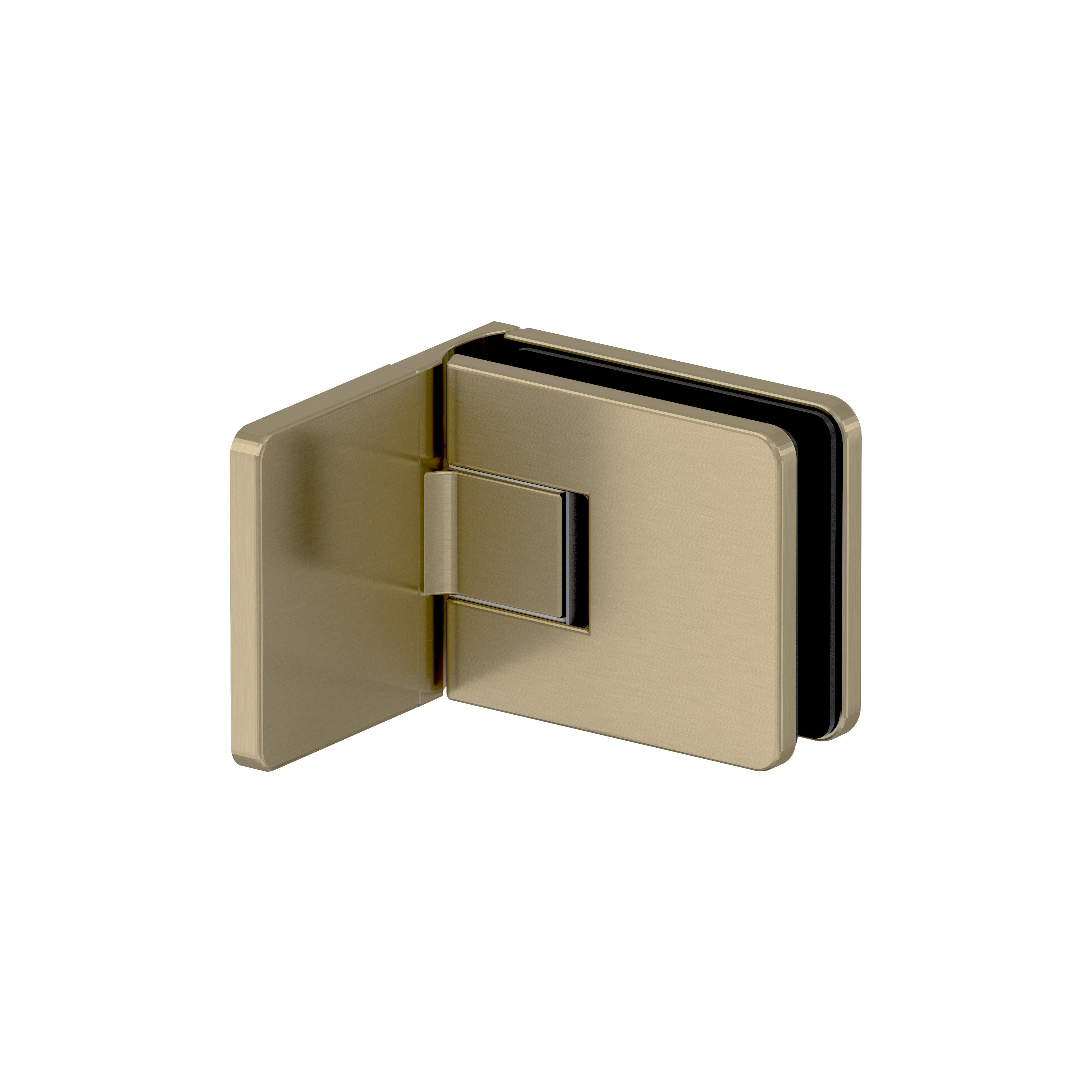

CALLISTO ADJUSTABLE WALL MOUNT OFFSET BACK PLATE HINGE
CST-OB90ADJ-BB
- NOT compatible with FG Glass Panels
- Adjustable to accommodate any angle up to 90 degrees
- No-show covers snap on to conceal screws for a clean, minimalist look
- Total allowable door weight: with 2 hinges - Up to 145 lbs. (65 kg), or with 3 hinges - Up to 165 lbs. (75 kg)
- Use with 5/16 in. (8 mm) or 3/8 in. (10 mm) thickness tempered safety glass
- Fast Fit technology easy slide-on hinge
- Fixed gaskets to prevent door slippage
See details
{{variantURL}}&width=360 360w,{{variantURL}}&width=375 375w,{{variantURL}}&width=535 535w,{{variantURL}}&width=750 750w,{{variantURL}}&width=1024 1024w,{{variantURL}}&width=1280 1280w,{{variantURL}}&width=1366 1366w,{{variantURL}}&width=1440 1440w
DESCRIPTION
The Future Glass Callisto Adjustable Wall Mount Offset Back Plate Hinge is made from high-quality solid brass. As part of our mid-size hinge collection, the Callisto supports door weights up to 145 lbs. with two hinges or 165 lbs. with three hinges. No-show covers snap on to conceal hardware and provide a clean, minimalist finish to any shower build. Future Glass hinges feature a unique fixed rubber gasket designed to reduce door slippage and our square cut-out design alleviates the need for traditional mouse ear glass panel cut-outs. Eliminating the need to remove the backing plate completely when fixing the hinge to the door panel allows for significantly faster and easier installation. The images provided are of the actual product or a close representation. Colors may vary, depending on your screen settings.
Technical details
Edge Profile
Square
Back Plate
Offset Back
Material
Brass
Max Door Weight (lbs.) (2 Hinges)
180
Mount Type
Wall Mount
Self-Centering
Yes
Weight (lbs.)
2
Width (in.)
3.1875
Height (in.)
2.4375
DETAILS
DESCRIPTION
The Future Glass Callisto Adjustable Wall Mount Offset Back Plate Hinge is made from high-quality solid brass. As part of our mid-size hinge collection, the Callisto supports door weights up to 145 lbs. with two hinges or 165 lbs. with three hinges. No-show covers snap on to conceal hardware and provide a clean, minimalist finish to any shower build. Future Glass hinges feature a unique fixed rubber gasket designed to reduce door slippage and our square cut-out design alleviates the need for traditional mouse ear glass panel cut-outs. Eliminating the need to remove the backing plate completely when fixing the hinge to the door panel allows for significantly faster and easier installation. The images provided are of the actual product or a close representation. Colors may vary, depending on your screen settings.
PRODUCT SPECS
Technical details
Edge Profile
Square
Back Plate
Offset Back
Material
Brass
Max Door Weight (lbs.) (2 Hinges)
180
Mount Type
Wall Mount
Self-Centering
Yes
Weight (lbs.)
2
Width (in.)
3.1875
Height (in.)
2.4375
